BF Vacuum Filter from China manufacturer - Mechin Industries Co.,Limited

Price:	10.0~30.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: BF-20

Production Capacity: 10,000 per month

Delivery Date: Within 20 days

Certification: Others

Pressure Range: -0.1~0MPA

Means of Transport: Ocean,Land,Air

Packing: Carton,Pallet,Wooden Case

Type: Vacuum Pumps

Brand Name: MECHIN

Removal Efficiency: 10um

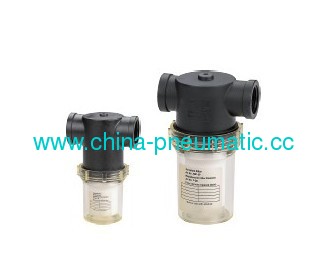

BF series vacuum filters:To filter dust and other small particles from the vacuum flow,reduces the risk of operation breakdown or stoppage in the pump

BF-10 BF-20 vacuum filter(Piab Style)

How to order BF series vacuum filter
Description Model No.

Filter element 3/8"	BF-10
Filter element 1/2" & 3/4"	BF-15/20
Filter element 1"	BF-25
Filter element 1½"	BF40

BF series vacuum filter technical data

Description	Unit	Value
Pressure range	MPa	-0.1–0 MPa
Material		PE, PP, PA
Temperature range	ºC	-20–80
Removal efficiency	µm	10

BF series vacuum filter technical data,specific

Description
Unit
Value

BF-10
BF-15
BF-20
BF-25
BF-40
Weight
g
70
168
170
424
550
Flow nominal
Nl/s
2.5
15
15
42
85
Volume Internal
cm³
45
195
205
495
675
Filter area
m²
0.003
0.010
0.010
0.019
0.023

BF series vacuum filter technical data,filter element

Description
Unit
Value

FE-10
FE-20
FE-25
FE-40

Weight
g
7
26
50
74

Filter area
m²
0.003
0.010
0.019
0.023

Removal efficiency
µm
10
10
10
10

Contact us for requesting more details of BF vacuum filters
